Understanding the role of panhard rods is crucial when it comes to the suspension system of a 4WD vehicle. These components play a significant part in maintaining lateral stability and improving overall drivetrain control, particularly in off-road conditions where suspension demands are high.
What is a Panhard Rod?
A panhard rod is a suspension link that provides lateral location of the axle. It runs laterally from one side of the vehicle’s chassis to the axle on the opposite side. Its main function is to prevent unwanted side-to-side movement of the axle relative to the vehicle body, which is essential for precise handling and safety.
The Importance of Panhard Rods in 4WD Suspension
In four-wheel-drive vehicles, especially those designed for rugged terrain, maintaining axle alignment can be challenging due to suspension articulation and uneven surfaces. The panhard rod ensures that the axle remains centred under the body of the vehicle, providing predictable handling characteristics and enhancing stability during cornering or when traversing obstacles.
Types of Suspension Systems Utilising Panhard Rods
Panhard rods are commonly found in solid axle suspension systems, including both coil springs and leaf spring configurations. Their effectiveness is particularly notable in coil spring setups where lateral location is not inherently provided. By contrast, leaf springs can sometimes offer lateral location, but panhard rods are often used in conjunction or as replacements for increased performance.

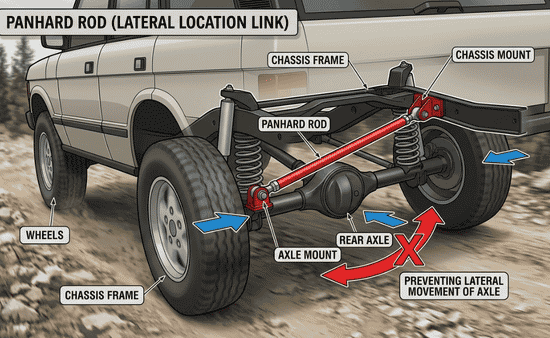

How Does a Panhard Rod Work?
The rod acts as a lateral control arm, restricting side-to-side movement while allowing vertical motion. When the vehicle moves over uneven terrain, the suspension compresses or extends vertically, but the panhard rod ensures that the axle does not shift sideways, which could destabilise the vehicle.
Benefits of Panhard Rods
Some of the primary advantages of installing or upgrading panhard rods in a 4WD suspension include improved vehicle handling, increased safety, and greater durability. By maintaining axle alignment, the tyres retain better contact with the ground, optimising traction and reducing tyre wear.
Aftermarket Panhard Rods for 4WD Vehicles
Many off-road enthusiasts and professionals opt for heavy-duty, aftermarket panhard rods to replace standard equipment. These can be constructed from stronger materials such as chromoly steel or billet aluminium and feature enhanced bushings that reduce flex and improve precision.
Adjustable Panhard Rods
Adjustable versions allow for fine-tuning of axle position, which is beneficial in lifted 4WD vehicles. When a vehicle’s suspension is modified with lift kits, the original panhard rod length may no longer align the axle correctly under the body, leading to handling issues. Adjustable rods help maintain the correct axle centre position despite changes in suspension height.

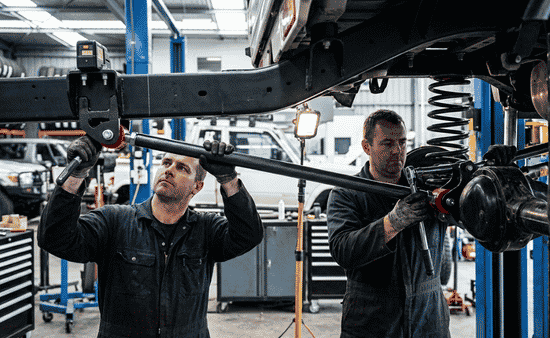

Installation Considerations
Proper installation is key to maximising the performance benefits of a panhard rod. The rod must be of appropriate length and correctly oriented. Incorrect installation can cause binding or increased wear on suspension components. It is recommended that installation be performed by qualified technicians familiar with 4WD suspension systems.
Panhard Rod vs Watt’s Link
An alternative to the panhard rod is the Watt’s link, which also controls lateral axle movement but uses a different mechanical arrangement. While a Watt’s link offers more consistent axle centring throughout suspension travel, it is more complex and costly. Panhard rods remain popular due to their simplicity and effectiveness in many 4WD applications.
Signs of Worn or Damaged Panhard Rods
Over time, bushings and rod ends can wear out, leading to excessive play and axle misalignment. Symptoms include unusual tyre wear, clunking noises from the suspension, and poor handling characteristics. Regular inspection and maintenance ensure that the panhard rod continues to function correctly.

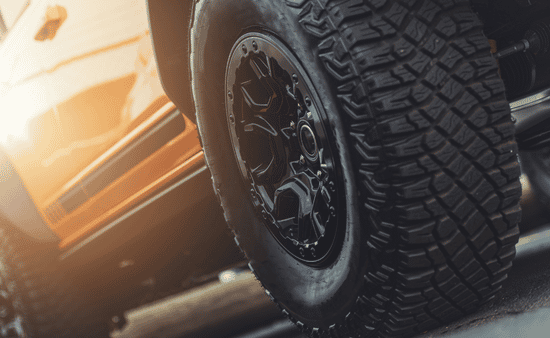

Upgrading Suspension for Off-Road Performance
For drivers frequently engaging in demanding off-road activities, upgrading to a high-quality panhard rod can greatly enhance vehicle control and durability. When combined with other suspension upgrades such as stronger springs and shock absorbers, a robust panhard rod helps to withstand the rigours of challenging terrains.
Choosing the Right Panhard Rod
Selecting the appropriate panhard rod depends on the specific make and model of the vehicle, type of suspension, and intended use. Consulting manufacturer specifications or experienced off-road suspension specialists is advisable to ensure compatibility and optimal performance.
Maintenance Tips for Panhard Rods
Regular maintenance includes checking the condition of rod ends and bushings, ensuring bolts are tight, and inspecting for signs of corrosion or damage. Replacing worn components promptly helps avoid further suspension issues and maintains ride quality.
Impact on Vehicle Safety and Handling
A well-functioning panhard rod is essential for maintaining safe handling characteristics, particularly when driving at higher speeds or navigating challenging terrain. Its role in controlling lateral movement contributes to predictable vehicle behaviour, enhancing driver confidence and passenger safety.
Conclusion
Panhard rods are a critical component in many 4WD suspension systems, offering essential lateral control of the axle. Understanding their function and importance allows vehicle owners to make informed decisions about maintenance and upgrades, leading to improved off-road capability and overall vehicle performance. For those seeking reliable and effective suspension solutions, investing in quality panhard rods from reputable sources remains a priority.
